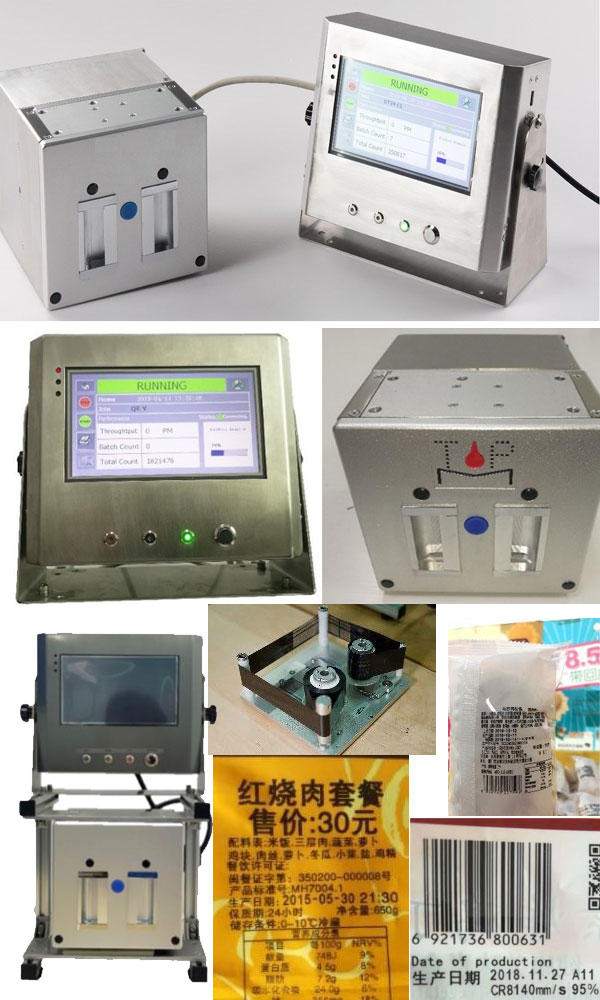

Thermal Transfer Overprinter (TTO)
- HighQuality Printing -300 dpi, high speed printing
- Optimizing Cost-Maximize use of thermal transfer ribbons, minimum print spacing of 0.3 mm
- Simple Operation-Quick & easy for ribbon replacement,easy installation and comes with robust bracket
- Features-Detection of missing code, auto monitor quality of print, auto adjustment print head height, auto adjustment prin thead parallelism.
Laser Marking Machines are widely used in food, beverage, alcohol, electronic components, handicrafts, chemical and industrial building materials, cables, card printing and other products. Common applications include marking of expiry date, batch number, shift, bar code, manufacturer's name and logo, etc. They can provide precision marking on a wide variety of surfaces such as metal, nylon, rubber, resin, ceramics, plated metals, PVC, PET, ABS, PP and PS, etc.
| Technical Specifications | ||
|---|---|---|
| Printer | T73(32mm) IT75 (53mm) | |
| Print Mode | Intermittent and Continuous Integration | |
| Left and Right | Optional | |
| Resolution | 300DPI | |
| Inter. Print Area | 32mm x 55mm | 53mm x 55mm |
| Cont. Print Area | 32mm x 90mm | 53mm x 70mm |
| Ribbon Length | 600M | 600M |
| Standard Ribbon Width | 33mm | 55mm |
| Print Contents | Date, post date, time counter, shift; Bar code, QR code, LOGO, text |
|
| Input | Print signal, Encoder signal (NPN, PNP) | |
| Output | Fault relay output | |
| Dimensions(mm) | 164X158X186 | 164X158X186 |
| Printer weight | 6.8Kg | 7.0Kg |
| Power Supply | 110/220V AC, 50/60 Hz, 120W | |
| Air Supply | No need air supply* | |
| Operation Environmental | Temperature: 5-400C Humidity:10%-90%, non-condensing |
|
| Operating Interface | 7-inch color LCD touch screen display, WYSIWYG Print content preview, Online Diagnostic Menu, Chinese and English language |
|
| Power Controller | Dimensions (mm) 231X190X85; Weight: 2.9kg |
|
